Pokiddo's 560㎡ Cyber - Sports Trampoline Park: A Multi - Dimensional Energy Field for Vitality Release
- Share
- publisher
- Sara
- Issue Time
- Aug 7,2025
Summary

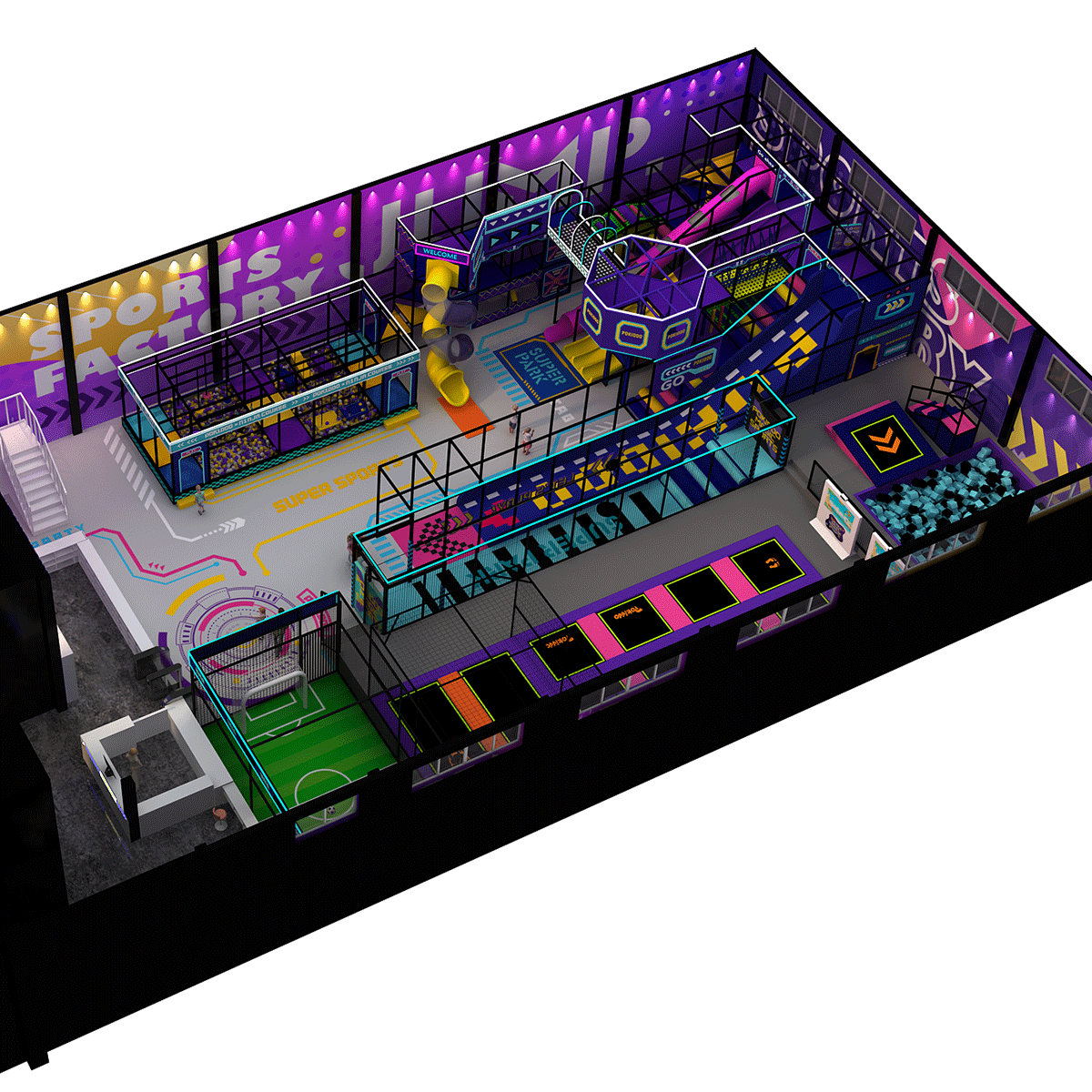

Pokiddo has customized a 560㎡ cyber - sports - themed trampoline park for this venue. With purple, pink, and blue as the main color tones, it integrates a three - dimensional system of "free jumping, challenge - breaking, and competitive cooperation". Precisely tailored for teenagers aged 8–16 and parent - child families, it enables the natural burst of sports vitality within a framework of redundant safety design.
Location: Portugal
Size: 560 square meters
Target Audience: Kids 3–1 years old (and their relief-seeking parents!)
Star Attractions: Soft play structures, slides, free trampoline zones, ninja course, foam pit, interactive football, etc.
I. Central Trampoline Matrix Zone (≈220㎡): The Core Venue for Sports and Socializing
Equipment and Materials:
Modular Trampolines: Standard 1.5m×1.5m modules are spliced together. The imported PP jumping surfaces (3mm thick, with a rebound rate of 65%, and tested for 50,000 fatigue cycles) are clearly divided into purple/black (high - intensity areas) and pink (light - intensity areas).
Function Segmentation:
（1）Free Jumping Area: No additional facilities, providing a pure jumping experience. Ten minutes of jumping is equivalent to the calorie consumption of 15 minutes of jogging (suitable for warm - ups or parent - child interaction).
（2）Dodgeball Zone: A 60㎡ area enclosed by 1.5m - high nylon nets (5cm mesh). It is equipped with 10 soft dodgeballs (PU material, 20cm in diameter, collision - proof).
（3）Basketball Interaction Area: Three sets of adjustable basketball hoops (2.2–2.8m high). The trampoline surface modules enhance rebound focus, and the baskets have soft - rubber edges (45cm in diameter, scratch - proof).
Design Details:
The edges of the trampolines are equipped with 30cm - high EVA soft enclosures (Shore hardness 35°) to prevent falls. The zones are distinguished by ground markings and neon light strips, providing intuitive visual guidance. For the 8–12 - year - old group, in the dodgeball zone, the frequency of cooperative interactions increases by 40% for each 15 - minute game.
II. Left Challenge and Breakthrough Zone (≈150㎡): A Testing Ground for Courage and Strength
Equipment and Materials:
Three - Dimensional Expansion Frame: Supported by a galvanized steel frame (3mm wall thickness, anti - corrosion treatment), and covered with a nylon climbing net (tensile strength ≥500N, 8cm mesh) on the surface, forming a three - layer structure:
（1）Rope Bridge on the bottom layer (3cm rope diameter, 20cm spacing, testing balance);
（2）Inclined Climbing Wall on the middle layer (15–30cm spacing between holds, simulating natural rock walls);
（3）Sky Walkway on the top layer (10cm - wide anti - slip pedals, 1.2m - high guardrails).
Speed Slide: An 8m - long HDPE transparent slide (5mm thick, scratch - proof). At the end, it connects to a 1.5m - deep foam pit (10cm - diameter antibacterial foam blocks, density 30kg/m³, fire - retardant grade B1).
Functional Logic:
（1）Climbing mobilizes more than 20 muscle groups. For teenagers aged 10–16, completing one climb consumes approximately 120 calories (equivalent to 20 minutes of jogging). Each layer is equipped with a 1.5㎡ emergency rest platform (soft - edged). The slide entrance has a double - locking safety belt (150kg load - bearing capacity) to ensure safety.
（2）The expansion frame is connected to the trampoline zone via a 1.2m - wide passageway. The purple - blue gradient neon lights on the top enhance the cyber atmosphere and stimulate the desire for challenges.
III. Ball Pit Interaction Zone (≈80㎡): A Buffering and Immersive Venue After Sports
Equipment and Materials:
Dual Ball Pit System: Embedded next to the trampoline, it is divided into a 7cm - diameter dark - blue ball pit (suitable for 10–16 - year - olds) and a 5cm - diameter pink - purple ball pit (suitable for 8–12 - year - olds). The pit walls have 30cm - high EVA soft padding (to prevent falls).
Interactive Devices:
（1）Ball Waterfall Pipeline: A 3m - high transparent PVC pipeline (40cm in diameter), with ball particles circulating and falling, simulating "cyber rain".
（2）Ground Projection: An 8㎡ anti - glare tempered glass screen (4K resolution). Stepping on it triggers particle effects (such as the diffusion of energy waves).
Experience Value:
The ball pit serves as a buffer zone after jumping, and the soft landing relieves sports - induced tension. The interaction of the ball waterfall and projection increases the stay time by 40% compared to a pure ball pit, making it suitable for relaxation during sports breaks. The 8–14 - year - old group particularly loves the "catching the ball waterfall" game.
IV. Right Competitive Cooperation Zone (≈70㎡): A Fusion Venue for Teamwork and Technology
Equipment and Materials:
（1）Mini Football Field: 12㎡ of simulated turf (5mm thick, scratch - proof), equipped with 3 sets of movable goalposts (1.2m high, PE material, rounded corners), and matched with soft footballs (20cm in diameter, PU material).
（2）AR Interaction Zone: An 8㎡ anti - glare tempered glass screen (4K resolution), loaded with 5 games such as "Trampoline Race" and "Virtual Target Throwing". It records airtime and jump frequency in real - time and generates sports reports.
Social Logic:
（1）Mini football promotes team competition. For the 10–16 - year - old group, in each 20 - minute game, the number of passes is ≥30, and both cooperation and strategic thinking are improved simultaneously. AR interaction combines jumping with technology, extending the average stay time by 50%.
（2）The zone is separated by black - and - white striped floor mats, visually strengthening the boundaries and preventing sports - related conflicts.
V. Low - Age Adaptation Zone (≈40㎡): An Exclusive Corner for Safe Exploration
Equipment and Materials:
Exclusive Facilities: Three sets of 1.2m - diameter mini trampolines (EVA soft - edged, 20cm high, 40% rebound rate), a rainbow soft bridge (4m long, inflatable, with anti - slip patterns on the surface), and a magnetic block wall (2.5m×3m, with permanent magnets and 200 ABS magnetic blocks, rounded corners).
Design Considerations:
（1）The entire soft - padded design prevents bumps. The low - intensity rebound of the mini trampolines protects the joints of children aged 3–8. The magnetic block wall supports 3D modeling, training spatial imagination.
（2）The low - age zone is adjacent to the parent rest area (6 viewing seats with USB charging ports) and is equipped with an independent disinfection station (hand sanitizer and shoe cover machine). Parents can monitor their children in real - time.
Underlying Logic of Safety and Design
1. Redundant Protection:
(1) The entire area is covered with 5cm - thick EVA floor mats (impact absorption rate ≥90%, EN 1177 certified). The edges of the equipment have a rounded radius of ≥10mm.
(2) Electrical equipment meets the IP65 waterproof and dust - proof rating. The AR screens are equipped with anti - glare and anti - fingerprint coatings.
(3) The ball diameter in the ball pits is ≥5cm (to prevent suffocation), and the foam blocks in the foam pit are ≥10cm (to prevent burying).
2. Cyber Atmosphere Creation:
(1) The main colors are purple, pink, and blue (color temperature 4000K, vibrant without being harsh on the eyes), balanced with a black - gray base.
(2) Low - power neon light strips (brightness ≤300cd/㎡) are embedded in the walls, with adjustable brightness to suit different time periods.
3. Circulation and Monitoring:
(1) "Circular + Radial" Circulation: Entrance → Low - age Zone → Central Trampoline → Challenge Zone → Competitive Zone → Exit, reducing age - related conflicts.
(2) There are 12 360° monitors throughout the area (2 close - up monitors focused on the low - age zone). Parents can view the monitors on their mobile phones. The data terminal in the rest area generates sports reports (including calories burned and interaction frequency) when scanned with a QR code.
Conclusion: Making Sports a "Perceivable Growth"
This 560㎡ trampoline park is centered on "layered sports": Teenagers break through in challenges and cooperate in competitions; parents and children interact in the trampoline zone; and young children explore in the exclusive zone.
Pokiddo believes that a good sports space should make "every jump have a direction" — from physical breakthroughs to team，from technological interaction to parent - child bonding. All designs are aimed at making "sports" truly an outlet for releasing vitality and forging one's self. This is the value of customization: turning "play" into goal - oriented growth and integrating "sports" into daily happiness.
